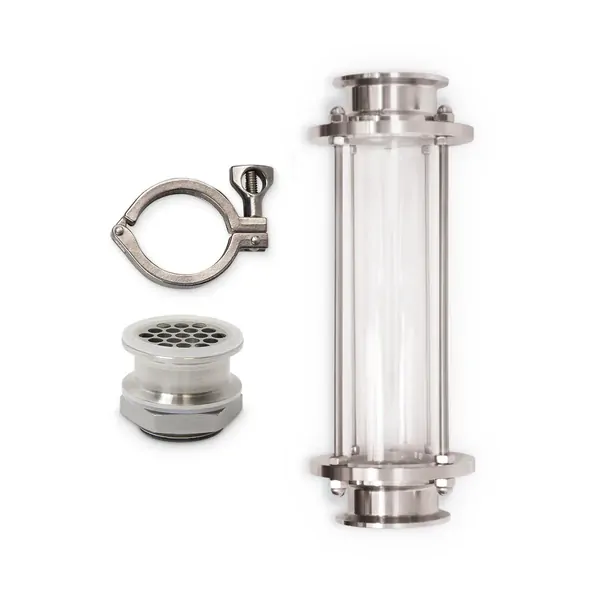

The Still Spirits Create+ Sight Glass Botanical Basket, the Create+ Threaded Adapter Set, and a 2" Tri-Clamp bundle allow you to convert your threaded Still Spirits T500 or Alembic condenser to a tri-clamp connection to use the Create+ Sight Glass Botanical Basket and other 2" tri-clamp accessories with older model condensers.

Key Features:

• 2" Tri-clamp connectivity

• Sight Glass constructed with 304 grade stainless steel and borosilicate glass

• Sight Glass holds up to 150 g ( 5.2 oz) of botanicals

• 304 grade stainless steel construction

• High temperature resistant food grade silicone

DISCLAIMER: Please note that in certain countries, alcohol distillation and the possession of distilling equipment are illegal, and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.

What's Included

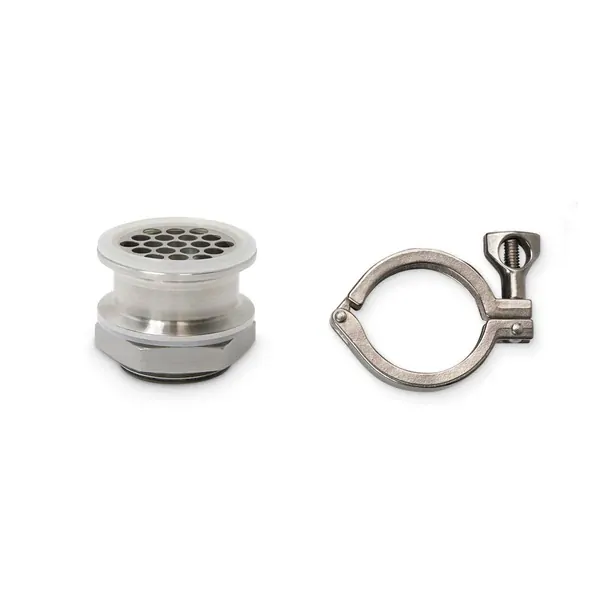

Threaded Adapter Set comprises of:

• DN40 Nut

• Sieved Gasket

• Silicone Gasket

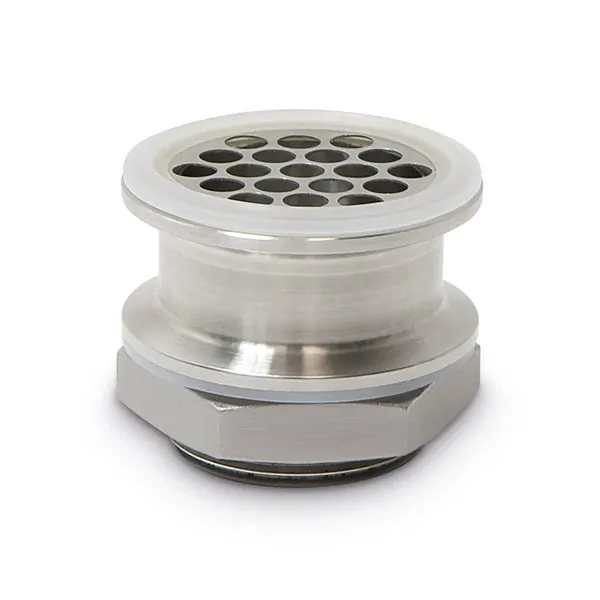

• 2" Tri-Clamp to DN40 Threaded Adapter

2" Tri-Clamp

Create+ Sight Glass Botanical Basket comprised of:

• 1 x Sight glass botanical basket with 2" tri-clamp ferrules

• 1 x 2” Tri-clamp

• 2 x Mesh filters (size 10)

Specifications

NOTE: The Threaded Adapter Set is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:

A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.

A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.

Note: The Create + Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.

Barcode # 4444378163748
Brand Still Spirits
Shipping Weight 6.5000kg
Shipping Width 20cm
Shipping Height 2cm
Shipping Length 20cm
