Grainfather G30 SUPER KIT + Graincoat, Hop Spider, Overflow Filter, Micro Pipework, Stainless Steel Paddle, Wortometer, High Performance CleanerRated 5/5 based on 2 reviews.
Share this product:
GRAINFATHER Super Kit ... The ultimate Grainfather G30 Package. Included in the package is several important additions to maximise your Grainfather brewing experience.
Plus an extended 3 Year AHB Warranty
All our Grainfather systems come with a full 3 Year AHB Warranty ... we will back up your brewing 100% and you will have our cheerful support for the lifetime of your brewing.

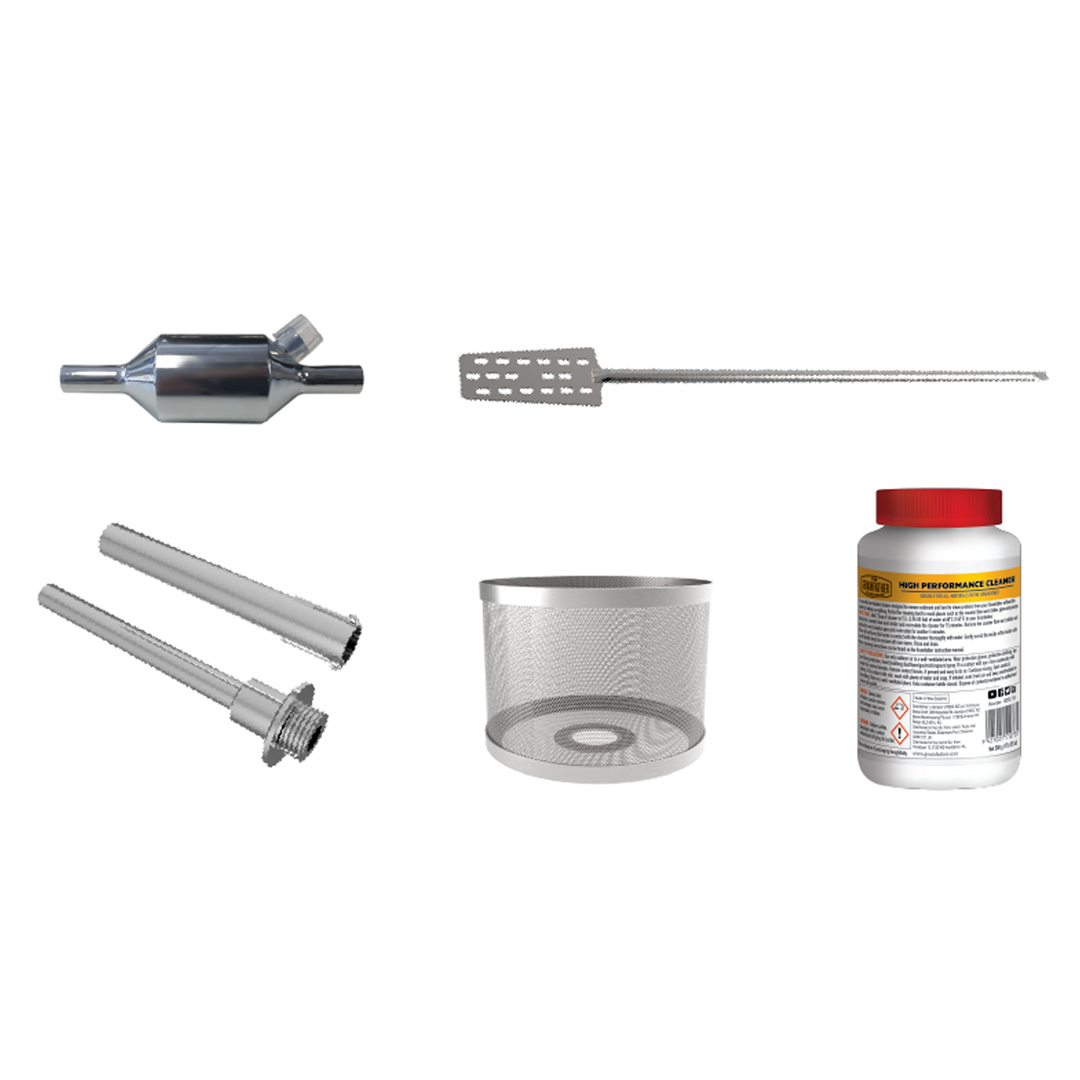

Items included in the Super Kit
- Grainfather G30 Connect Blue Tooth Model
- Grainfather Graincoat - (insulation jacket for heat efficiency)
- Mangrove Jacks Hop Spider - (contains hops during the boil)
- Grainfather Stainless Steel Paddle - (ideal for stirring grain in the boiler)
- Grainfather Wortometer - (for accurate control of wort transfer temperature)
- Grainfather High Performance Cleaner - (perfect for stainless steel and removal of any scolding marks on the boiler)
- Grainfather Overflow Filter $17.95 - (prevents particles moving down the overflow pipe)
- Grainfather Micro Pipework - (Adjusts the GF to a 10L version for smaller batches)
In Summary...Stir your grain in the boiler with the stainless steel Paddle, minimise blockages with the Overflow Filter, brew smaller batches with the Micro Pipework, measure the temperature of your wort during transfer with the Wortometer, and remove the need for tedious scrubbing and take care of your stainless steel with the Grainfather High Performance Cleaner. The Stainless-steel Hop Spider will allow you to keep all the hops together in the boiler keeping it out of wort.

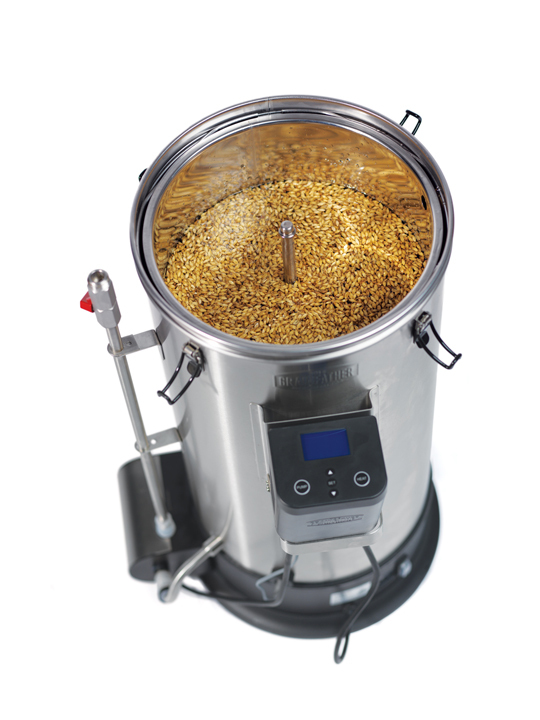

9KG GRAIN CAPACITY- A stainless steel expandable grain basket allows you to brew with anything from 4.5 – 9 kg of grain. The addition of the Micro Pipework in this kit allows for smaller 2- 4kg batches to be produced

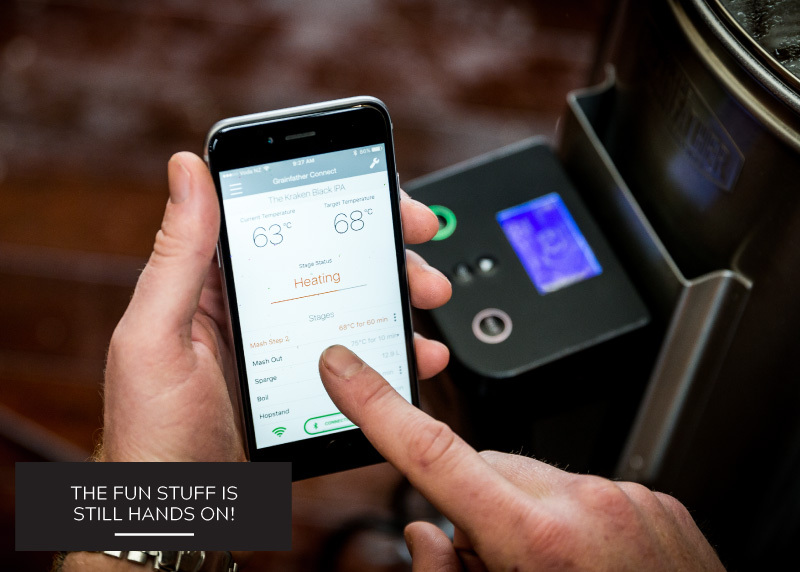

BLUETOOTH CONTROLLER - Control and manage your brew remotely via Bluetooth. Set mash schedules, import recipes and drive the session automatically.

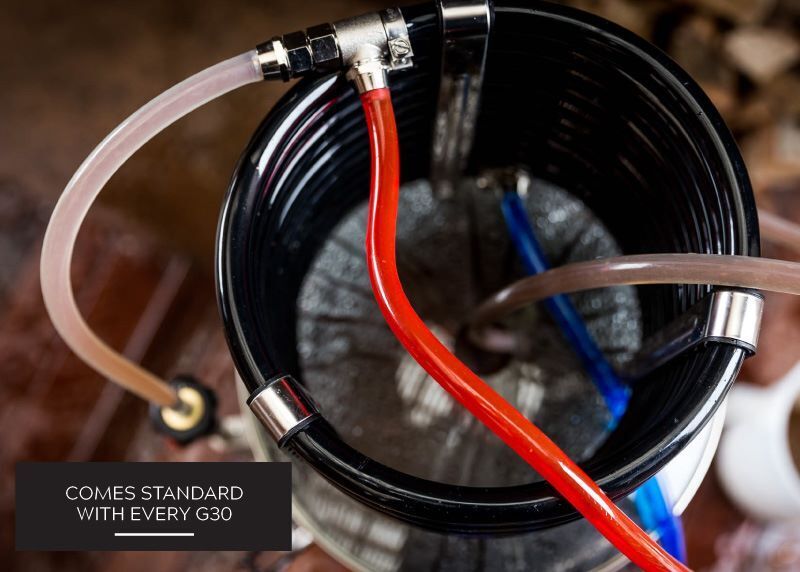

COUNTER FLOW CHILLER- The Counter Flow Chiller comes standard with the G30 Brewing System. Allows sanitary wort transfer, directly into your fermenter at the perfect temperature.
PID HEATING- Dial in the exact temperature on the digital controller with a modified PID algorithm for ultra-accurate temperature control and no overshooting.
EASY CLEANING - Pump filter, temperature control unit, piping and mesh plates are all easily removed and taken apart to make cleaning simple after the brew day.
Package Content Explained. (see the pictures of each item in our listing)

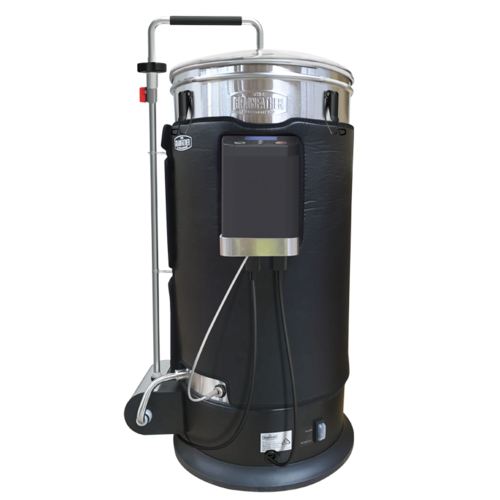

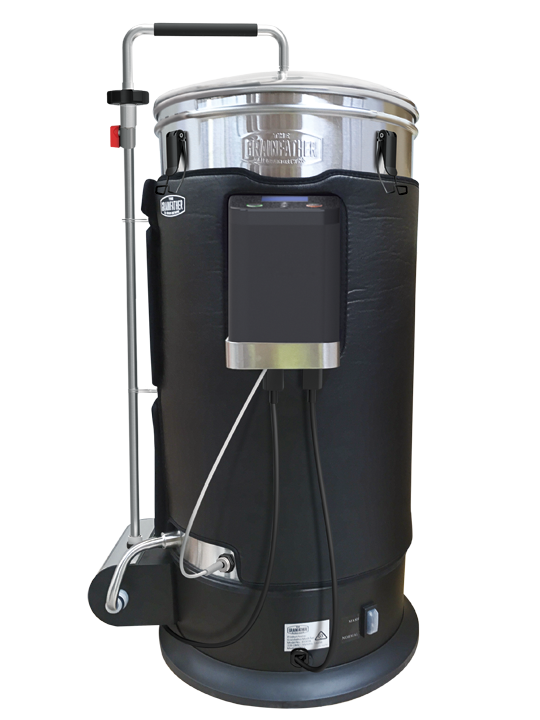

Grainfather Graincoat is an insulation jacket is designed to improve energy efficiency reducing heat loss and assists in and maintaining a constant temperature during your brew especially during cooler times.

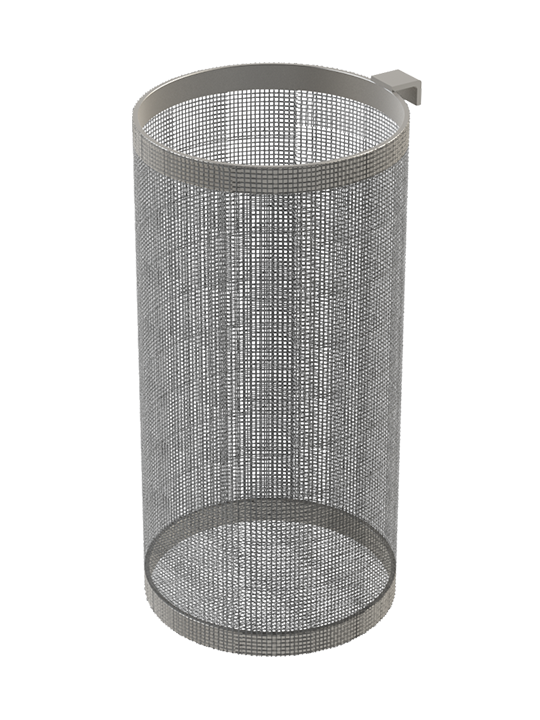

The Mangrove Jack’s Hop Spider keeps hops together during the boil and can be removed at the end of the boil significant reducing sediment in the wort. Designed for maximum wort flow and increased hop flavour and aroma. Made from 800 micron 304 grade stainless steel mesh.

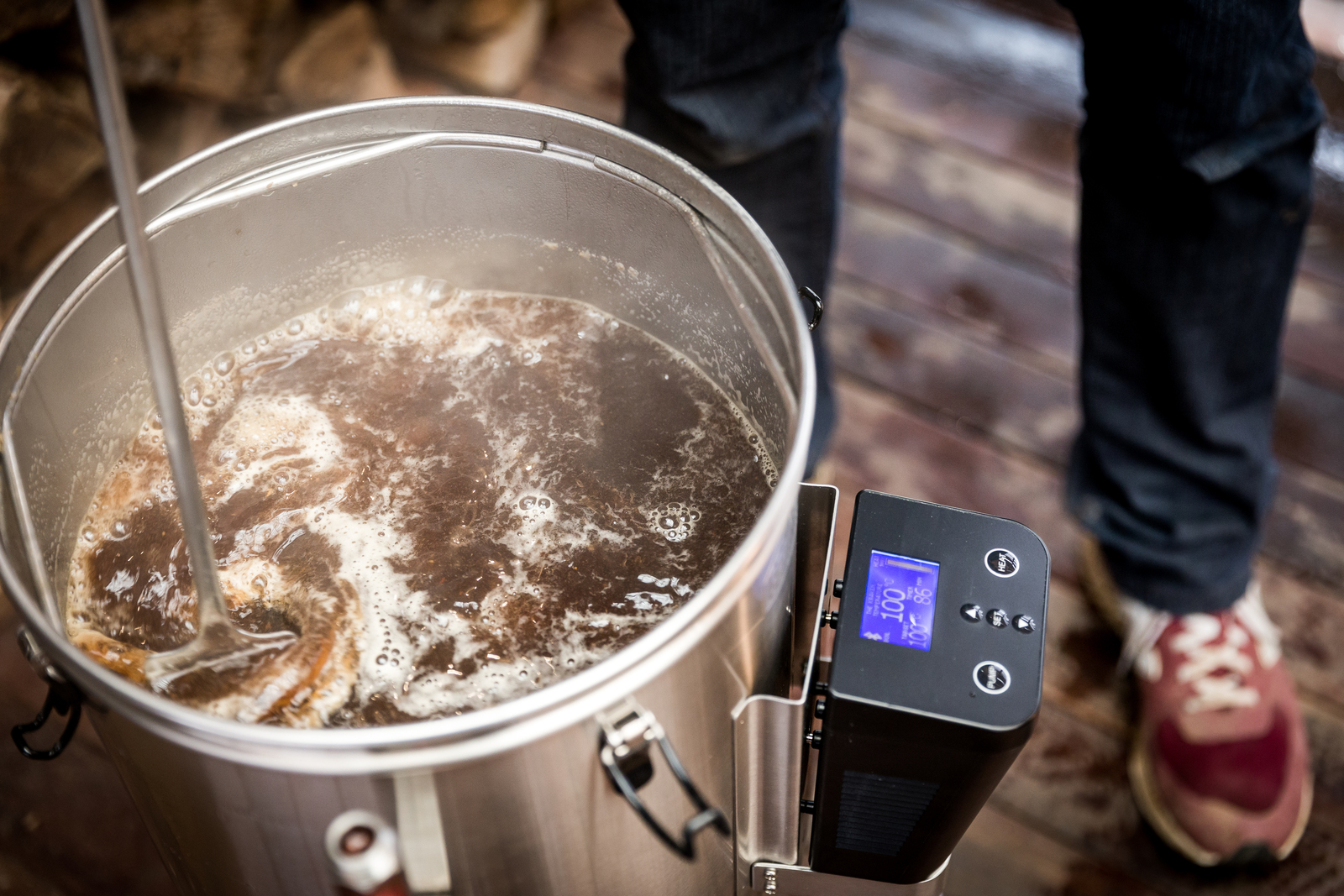

A Stainless Steel Paddle is required to stir the mash whilst it is hot - 61cm overall length. Plastic paddles cannot tolerate high temperatures.
Grainfather Wortometer is designed for use in conjunction with the Grainfather Connect Control Box thermometer, for accurate control of your wort transfer temperature through the Grainfather Counter Flow Chiller. Avoid long lag time and off flavours by using the Grainfather Wortometer. Adjust your wort and water flow rates from the Grainfather Counter Flow Chiller by dialling in the exact wort temperature your specific yeast requires.
Grainfather High Performance Cleaner is specially formulated to be used with the Grainfather and to be used on both stainless steel and Copper. It is important to use the right type of cleaners because during mashing excess proteins are produced. These proteins can scold on hot surfaces and can be a challenge to remove. The job is easy and gentle with this product. It is also does a great job in the counterflow wort chiller and pipes.

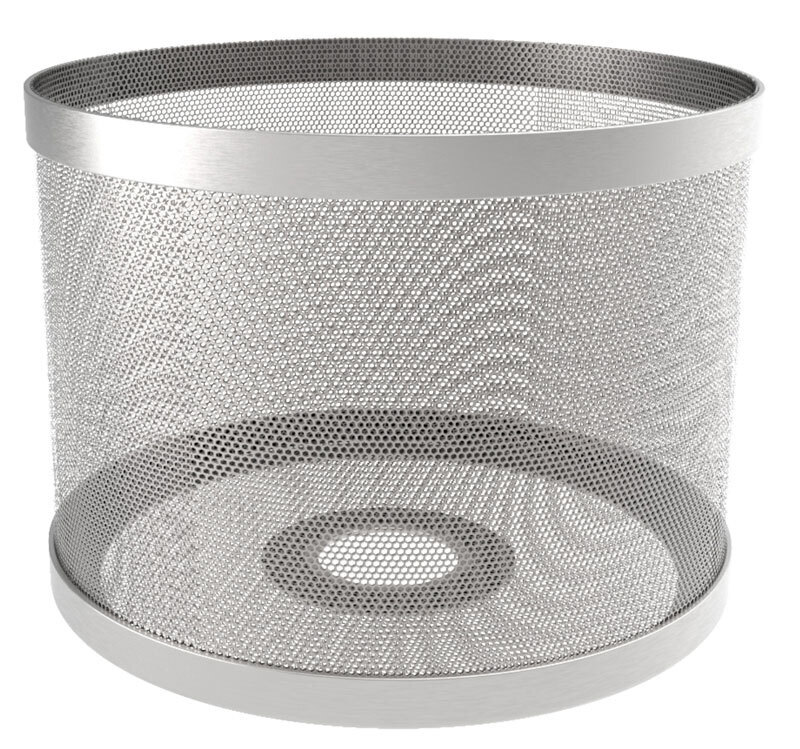

Grainfather Overflow Filter Made from 304 grade Stainless Steel and featuring a 600 Micron Mesh Basket . The Grainfather Overflow Filter fits between the overflow inlet and the top mash plate and prevents particles moving down the overflow pipe.

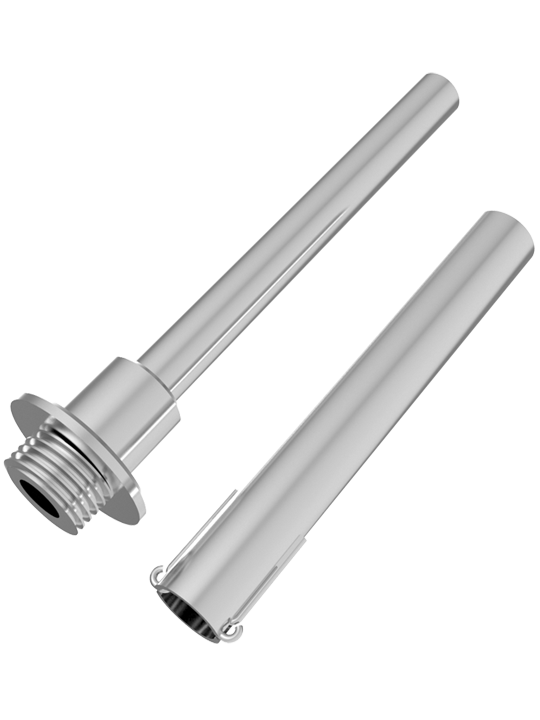

Grainfather Micro Pipework Designed to adjust the size of your Grainfather internals so you can brew small batches up to 10Lt per brew. This allows small batch brews using a grain bill of 2 to 4KG for your mash.
About the Grainfather Connect
The Grainfather Connect with blue tooth connected control box, is your all in one grain brewing system for both experienced and beginner grain brewers. It is a 30 L capacity unit made from quality 304 grade stainless steel, designed to make up to 23 L of beer from one brew. Undoubtedly the best All-Grain unit of its kind.
The Grainfather Connect Control Box provides automation without removing the fun of brewing. You can be as involved as you want to be! More automation means you can multi-task or simply relax while brewing and then be alerted when to return for your next step.
(For more info and to see the Grainfather in action check out the Grainfather videos below)
Powered by electricity for precision mash & boil temperatures
The Grainfather is electrically powered and features a dual element (both 500 watt & 2000 watt) to vary power and heat output so you can mash with lower heat and quickly bring it to boil during the different stages of the brewing the brewing process. The Grainfather is known for precision temperature control for the best possible results. A gentler heat is used at certain stages to minimise the risk of scorching and after the mash it can also ramp up the heat quickly for when more vigorous heating is required. The Grainfather cleverly switches between the two as necessary. Heating from mash to boil takes approximately 20 minutes.
Connect with Blue Tooth to your mobile and the Grainfather Brewing Community
Use the Connect Control Box in conjunction with the Connect App to connect to the Grainfather Recipe Creator and the Grainfather Brewing Community. . Create your recipes on the Grainfather Brewing Community and then sync these recipes with the Connect app The control box has Bluetooth connection to your mobile device so it can be controlled remotely. This allows you to do other activities or tasks while brewing and then be alerted when to return to your next step.
More about the Connect Control Box & the APP
- PID algorithm works in conjunction with a triac for more stable heating and so you can control power output
- Programmable step mashing
- Delayed heating - fill your Grainfather with water the night before and wake up to your water at strike temperature ready for brewing straight away
- Change between Celsius and Fahrenheit easily
- Waterproof graphic display
- Dual functionality: Use with an app or use in manual mode
- Features a library of Grainfather recipes programmed into the app
- Can be used to import recipes on XML files on iOS9 or higher
- Grainfather Brewing calculators provided in the app
- Create recipes on the Grainfather Brewing Community and then sync these with the Connect App to brew
Required Specifications for the App are:
- iPhone/iPad 4S or higher
- Software - iOS8 or higher. Must have Bluetooth 4.0 or higher
- Hardware: Android 4.3 (API Level 18) or higher
- Software - Must have Bluetooth Low Energy (LE)/Bluetooth Smart
The Multi-function Grainfather Pump
A 6 Watt, 1,800 RPM magnetic powered pump perfectly suited to meet tough demands of continuous brewing. Designed to recirculate the wort through the grain bed for maximum brewing efficiencies during the mash
Also the pump is used during the cooling stage to pump hot wort through the wort chiller for efficient cooling of the mash. Also used to clean all pipe work by pumping the cleaning detergent through the system.
A Grainfather pump filter is fitted inside the Grainfather to prevent hops and stray grain from entering the pump or pipework, keeping the wort clear while also preventing any blockages.
Grain Basket for mashing and sparging
A stainless steel variable height grain basket allows you to brew with anything from 4.5 – 9 kg of grain. Featuring perforated plates and telescopic pipework to expand or decrease the size of the grain basket to the size of your grain bill. When ready for sparging, a basket lifting handle is then inserted into the grain basket to lift it up, out of the wort. A 45 degree turn then allows the grain basket’s feet to rest on the specially designed support ring to allow the grain basket to drain while you can batch sparge over the top. A Sparge Water Heater can be purchased additionally to heat your water to the specific temperature required.

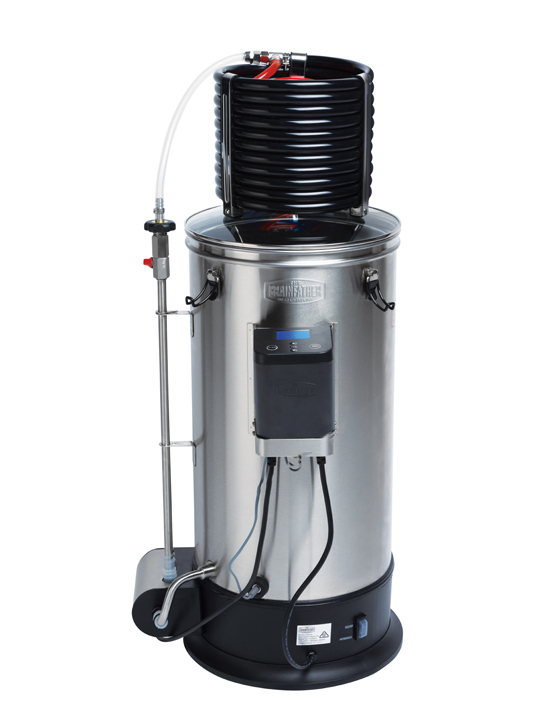

Counter Flow Wort Chiller
A counter flow wort chiller has two connection points. One side is connected to the Grainfather, while the other is connected to the cold tap water. The hot wort is then pumped through copper inner coil while the cold water flows through the outer coil in the opposite direction, providing instant cooling and heat exchange. Once cooled the fresh wort can then be pumped directly into your clean, sterile fermenter. This reduces the chance of contamination as nothing is inserted in the wort, and it is only passing through the wort chiller once , going straight to the sterile fermenter where the yeast is added. A full batch of hot wort can be cooled in as little as 20 minutes. The cooled wort temperature will be cooled to approximately 5 degrees above whatever your tap water temperature is.
Grainfather Support & 3 Year Warranty
The Grainfather is fully supported by us at AHB and by a fantastic Grainfather support team who love brewing just as much as you do. Our support team is here for any technical enquiries on brewing or how the Grainfather works, as well as general customer service enquiries. All Grainfathers come with a 36 month warranty.
